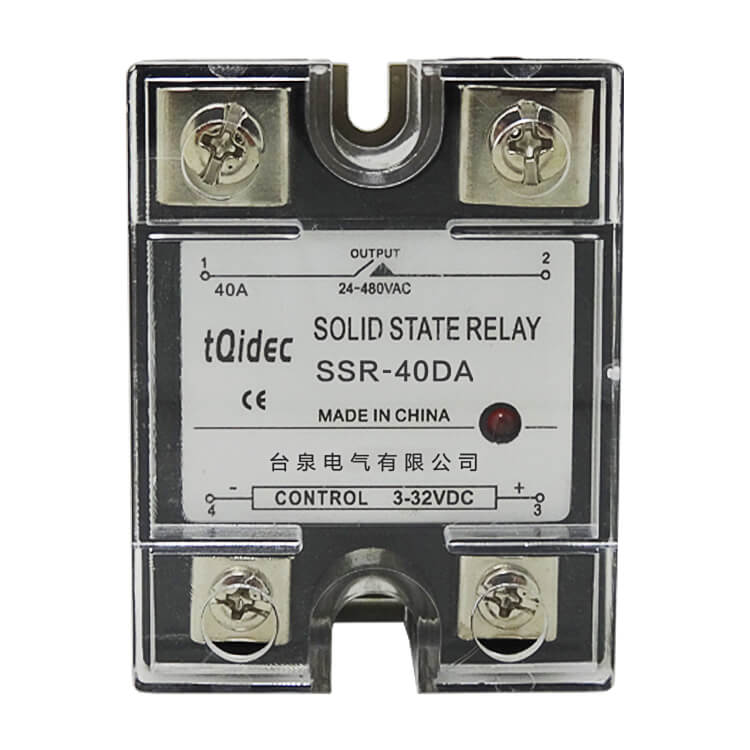

SSR-40DA Single Phase AC Solid State Relay
General description :
The Solid State Relay (SSR) is usually used in Computer peripheral interface equipment, Electric furnace heating, Thermostat equipment, CNC machinery, Industrial automation equipment, Signal lights, Stage lighting control equipment instrumentation, Medical equipment, Photocopiers, Plastic machinery, Air conditioners, Washing machines, in addition to chemical, coal and other explosion-proof, moisture, anti-corrosion have a large number of use, as an ideal substitute for electromagnetic relay, AC contactor. It has following features:
• Small input current,
• Instant reaction,
• No noise,
• Long life,
• Compatible with MCU PLC interfaces,
Main technical parameters:
| Model: SSR-40DA (DC TO AC) | |
| Load Current | 40A |
| Load Voltage | 24-380VAC |
| Control Voltage | 3-32VDC |
| Control Current | DC5-15mA |
| On Voltage | ≤1.3VAC |
| Off Leakage Current | ≤2mA |
| On-off Time | ≤10mS |
| Dielectric Strength | Input – output – floor ≥ 2500VAC |
| Insulation Resistance | 1000MΩ/500VDC |
| Ambient Temperature | -30℃~+75℃ |
| Mounting Methods | Bolt fixed |
| The work instructions | LED |
| Weight | 135g |
Dimension & Fixed hold:
