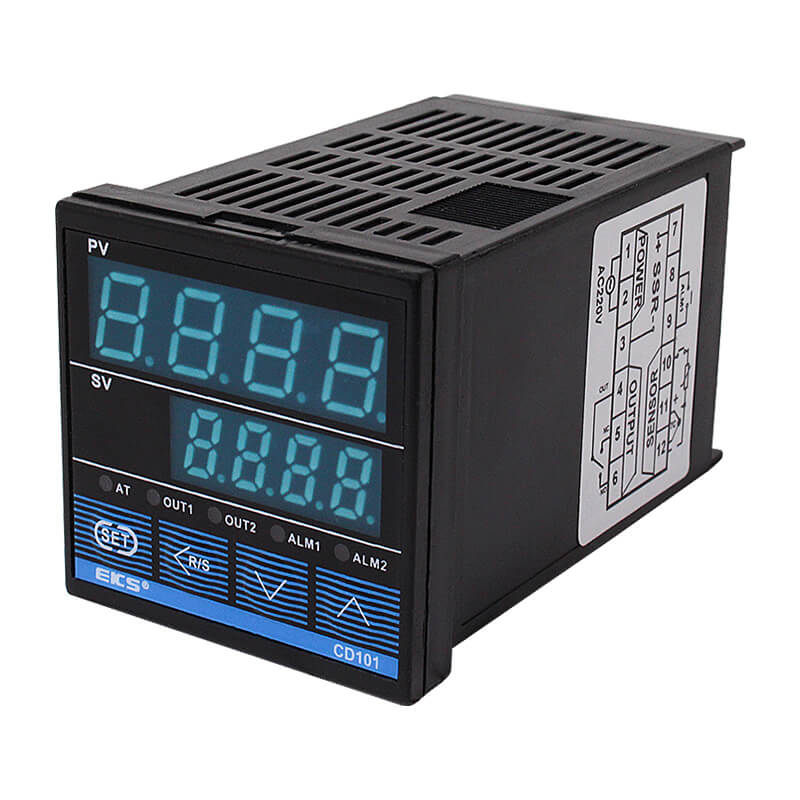

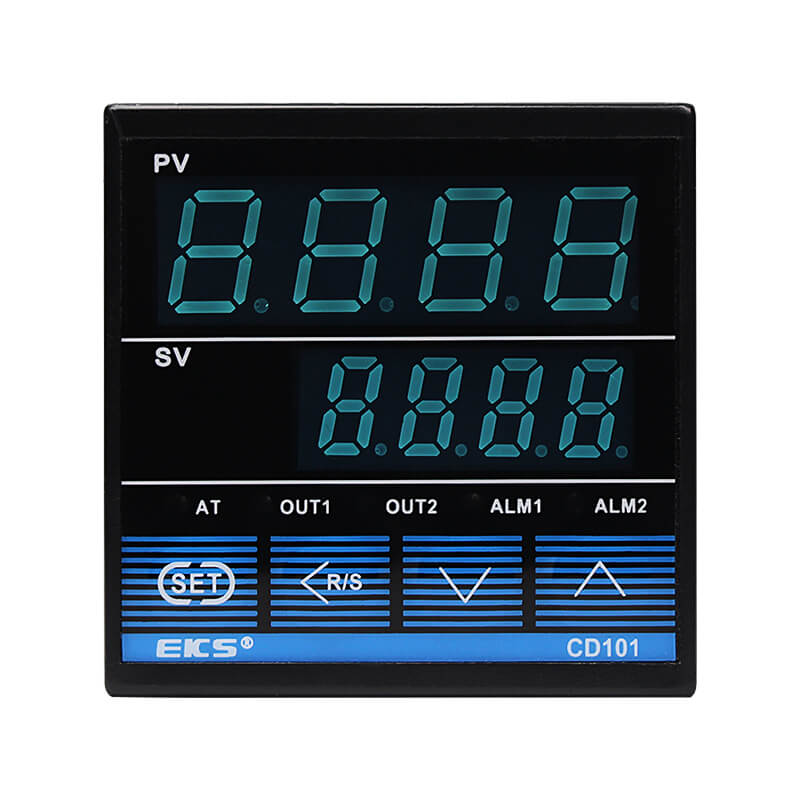

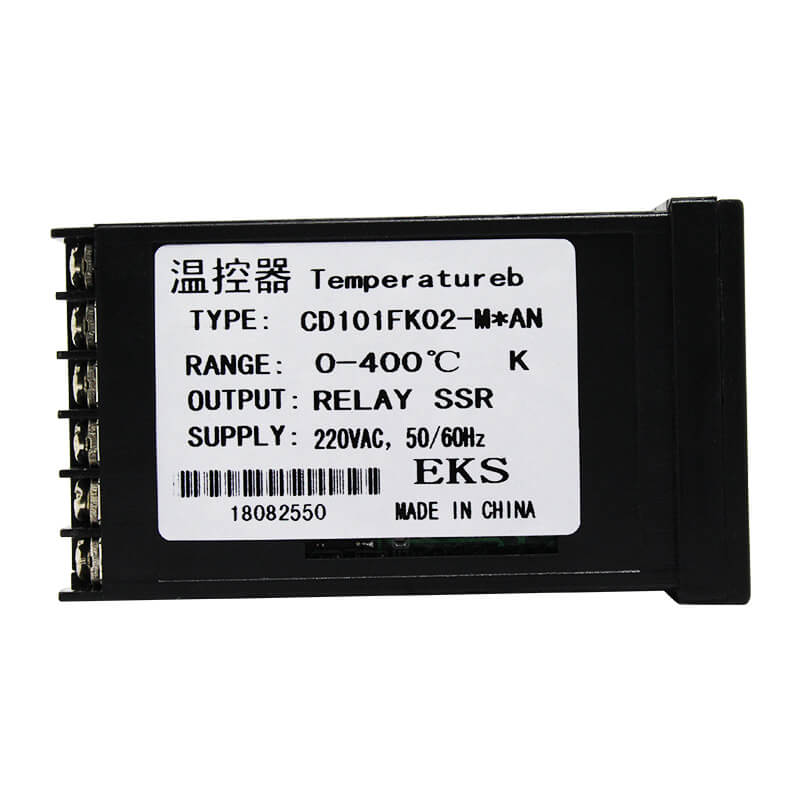

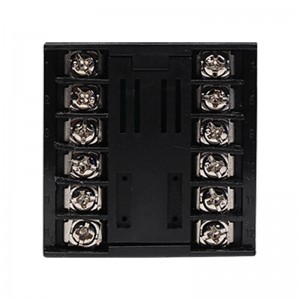

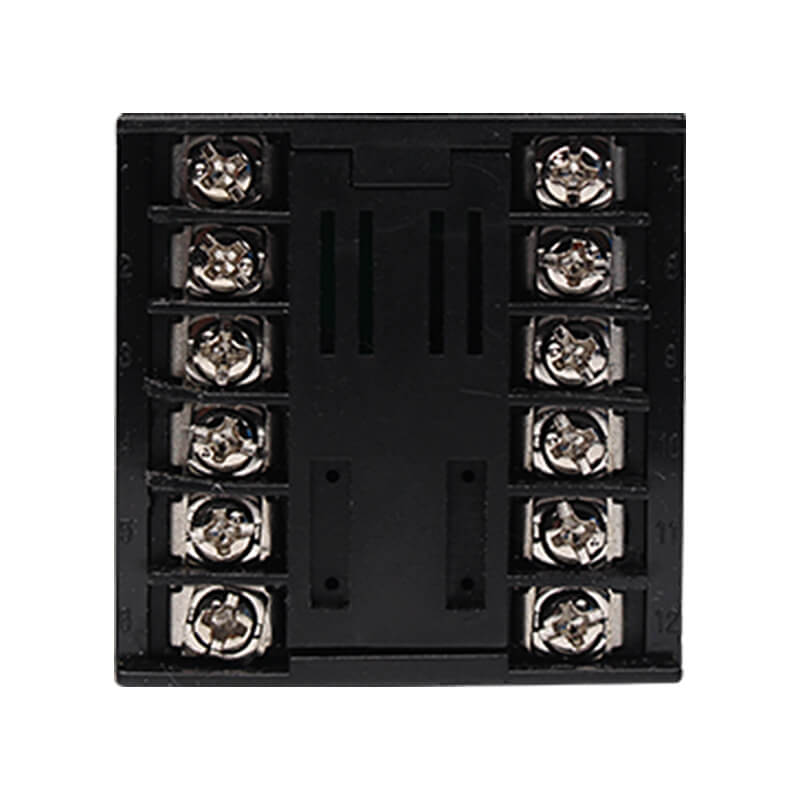

PID Faaali atu CD101 Faatekinolosi Pule vevela atamai
faamatalaga Sili:
CD faasologa atamai (vevela) faaalia Pule Faatonu faʻatamafaiina 8-si tasi-malamala
le faatuatuaina sili, a eseese sensors saoloto sao, ma o le faaaoga se tele o ituaiga
fesuiaʻi tuuina atu le mana. Faailoga faatinoga o galuega a oloa, faiga sao, pulea
galuega tauave ma le tele faapipiiina e atoatoa o gatasi ma i mported atamai
e pulea le vevela faafuainumera. CD faasologa mita atamai, ua i ai le lata fuzzy
pulea ma le tuufaatasia ma le alualu i luma algorithm fetuunaiga PID, tonu pulea
le mea pulea.
filifiliga tele:
|
faataitaiga |
tele i fafo atu (W x H x D) |
tele pu |
|
CD101 □□□ - □□ * □□□ |
48x48x80 (mm) |
45 x 45 (mm) |
|
CD401 □□□ - □□ * □□□ |
48x96x75 (mm) |
45 x 92 (mm) |
|
CD701 □□□ - □□ * □□□ |
72x72x75 (mm) |
68 x 68 (mm) |
|
CD901 □□□ - □□ * □□□ |
96x96x75 (mm) |
92 x 92 (mm) |
Saunoaga: o le faailoga "□" faatusa i le mea o galue e te manaomia, faamolemole tagai i le faamalamalamaga lenei.
faamalamalamaga faataitaiga:
CD □ 01 □ □ □ - □ □ * □ □ - □
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨
① Standard sizes: 1（48x48x80mm）、4（48x96x75mm）
7 (72x72x75mm), 9 (96x96x75mm)
② Pulea faiga: F: PID faatinoga ma calculus otometi (suia gaoioiga)
D: PID faatinoga ma calculus otometi (gaoioiga lelei)
③ sao faiga: thermocouple: K, J, R, S, B, E, T, N, W5Re / W26Re, PLII, U, L,
tetee vevela Pt100, JPt100
④ Faaali tele:
|
ituaiga sao |
Sao tele faaaliga |
kote |
ituaiga sao |
Sao tele faaaliga |
kote |
|
|
K |
0 ~ 200 ℃ |
K 01 |
S |
0 ~ 1600 ℃ |
S 01 |
|
|
0 ~ 400 ℃ |
K 02 |
0 ~ 1769 ℃ |
S 02 |
|||
|
0 ~ 600 ℃ |
K 03 |
B |
400 ~ 1800 ℃ |
B 01 |
||
|
0 ~ 800 ℃ |
K 04 |
0 ~ 1820 ℃ |
B 02 |
|||
|
0 ~ 1200 ℃ |
K 06 |
E |
0 ~ 800 ℃ |
E 01 |
||
|
J |
0 ~ 200 ℃ |
J 01 |
0 ~ 1000 ℃ |
E 02 |
||
|
0 ~ 400 ℃ |
J 02 |
J |
-199,90 ~ + 649.0 ℃ |
D 01 |
||
|
0 ~ 600 ℃ |
J 03 |
-199,90 ~ + 200.0 ℃ |
D 02 |
|||
|
0 ~ 800 ℃ |
J 04 |
-100,0 ~ + 200.0 ℃ |
D 05 |
|||
|
0 ~ 1200 ℃ |
J 06 |
0,0 ~ + 200.0 ℃ |
D 08 |
|||
|
R |
0 ~ 1600 ℃ |
J 01 |
0,0 ~ + 500.0 ℃ |
D 10 |

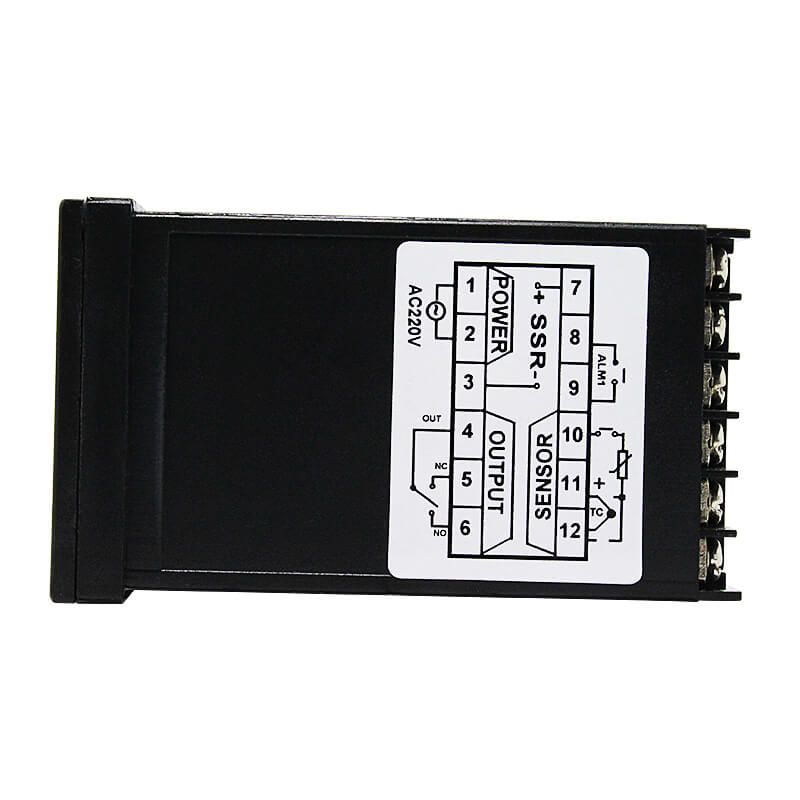

⑤ The first control output: (OUT1)(Heating side)
M: galuega faatino fesootai moligafua 8: i le taimi nei galuega faatino (DC4-20mA)
V: volitiga uaua galuega faatino G: tulia faagaau pulea Thyristor ma amoti galuega faatino
T: galuega faatino faagaau pulea Thyristor
⑥ le galuega faatino pulea lona lua: (OUT2) (itu Cooling) * 2
E leai se faailoga: ina le gaoioiga pulea o F po o le
M: galuega faatino fesootai moligafua 8: i le taimi nei galuega faatino (DC4-20mA)
V: volitiga uaua galuega faatino T: galuega faatino faagaau pulea Thyristor
⑦ atuatuvale Sili (ALAM1)
N: e leai se faailo A: atuatuvale palasi tapulaa Luga
B: atuatuvale palasi tapulaa Lower C: Luga ma atuatuvale palasi tapulaa maualalo
W: Lower-tapulaa taua atuatuvale faatulaga H: atuatuvale taua galuega faatino tapulaa Luga
⑧ atuatuvale Lua (ALAM) * 2 (Tutusa mataupu e pei o le atuatuvale frist)
J: atuatuvale taua galuega faatino Lower V: atuatuvale taua seti Luga
⑨ galuega tauave Fesootaiga:
N: e leai se galuega tauave fesootaiga 5: Laasaga-485 (faiga uaea lua)
